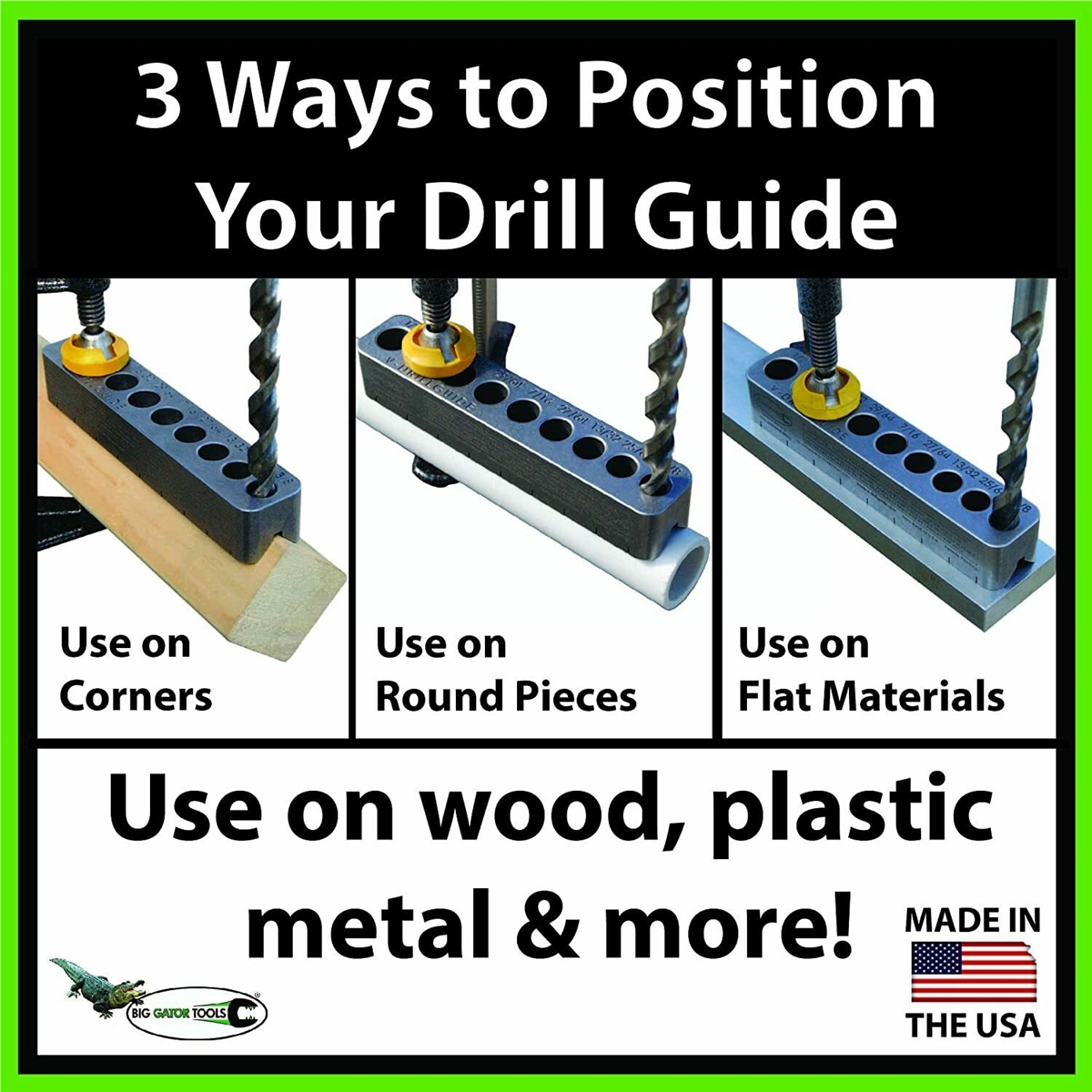

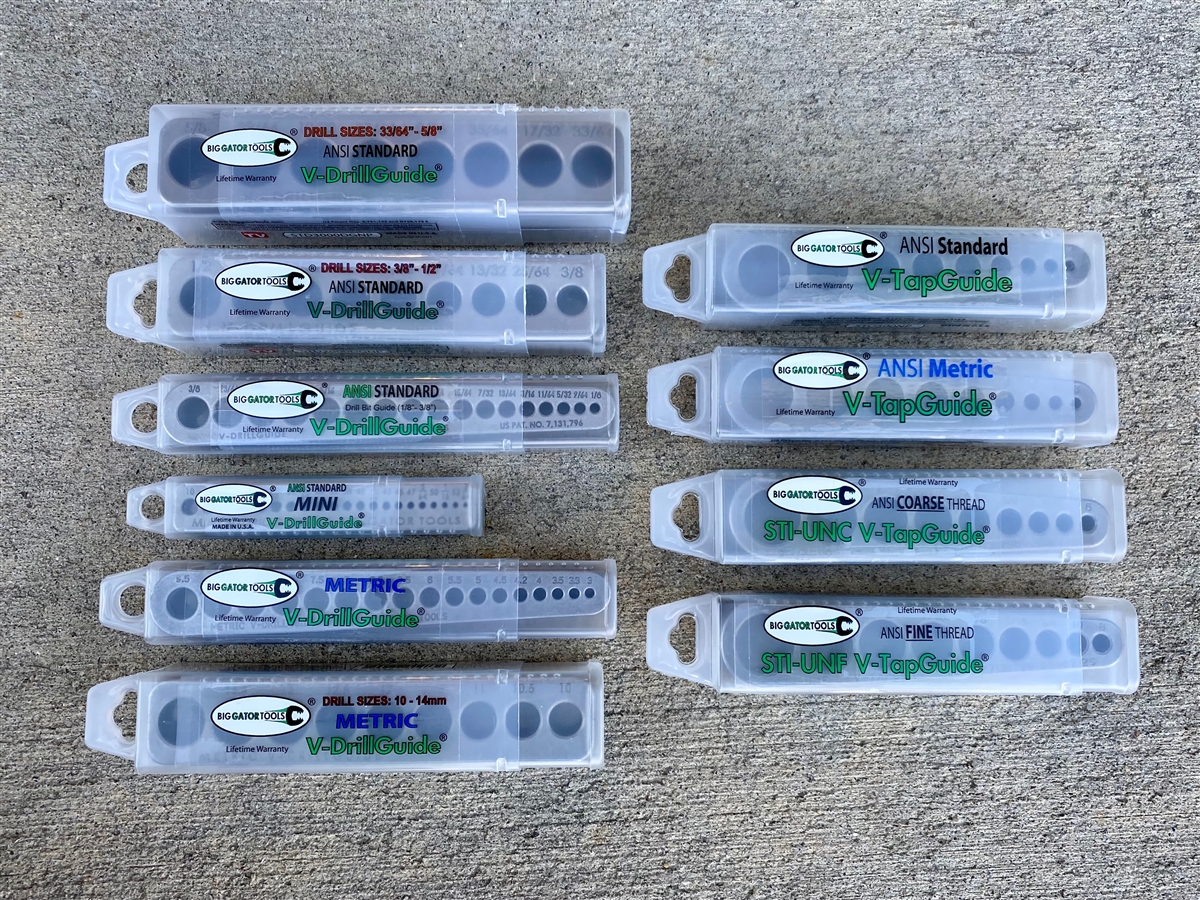

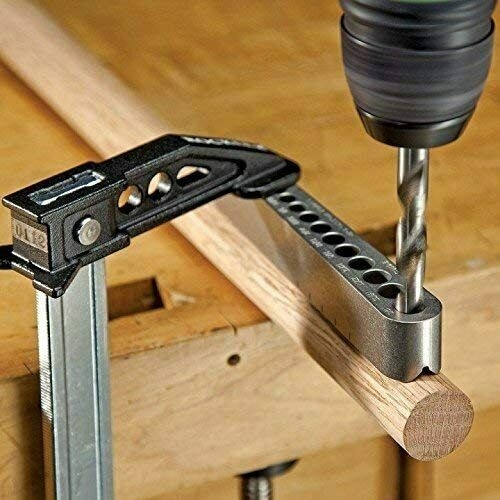

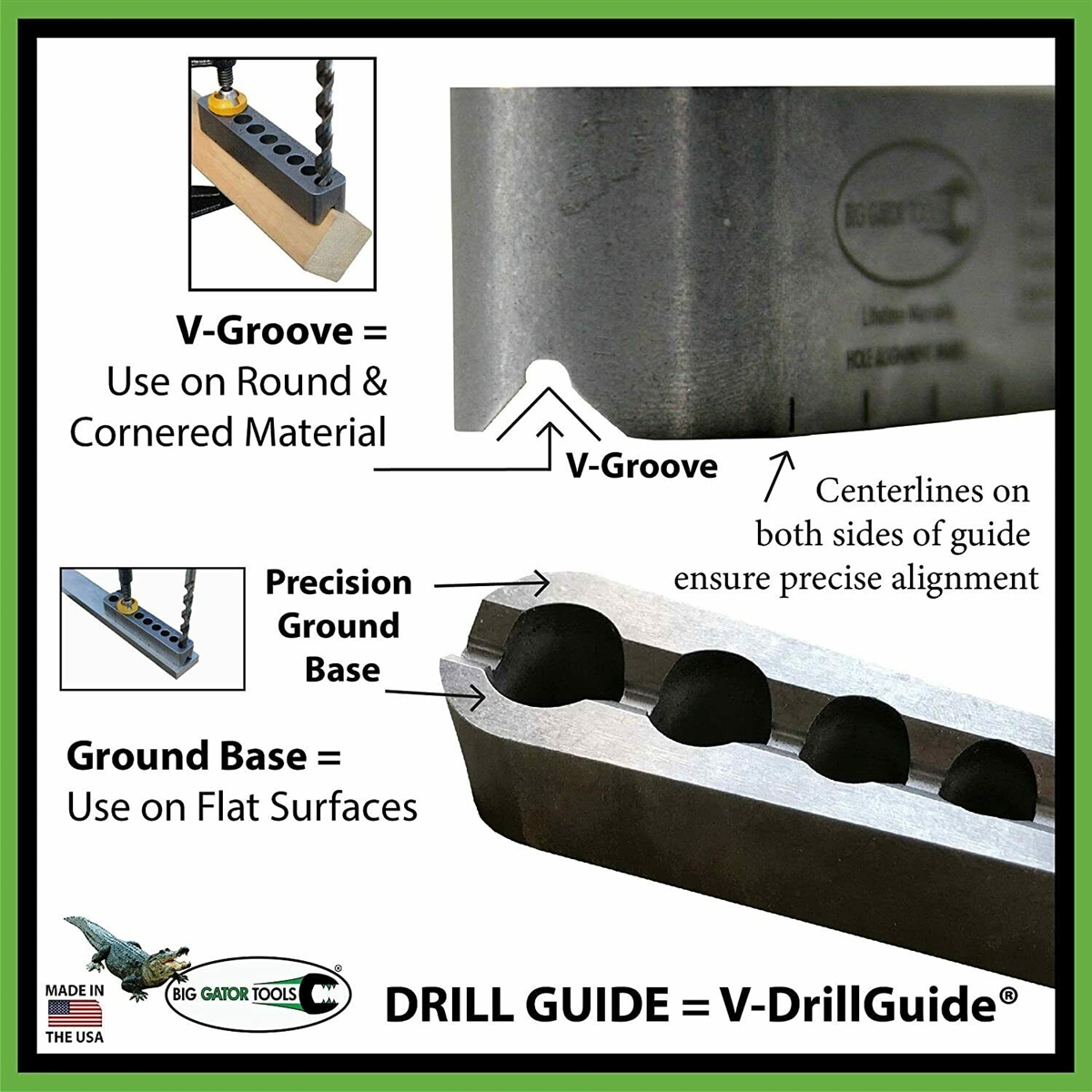

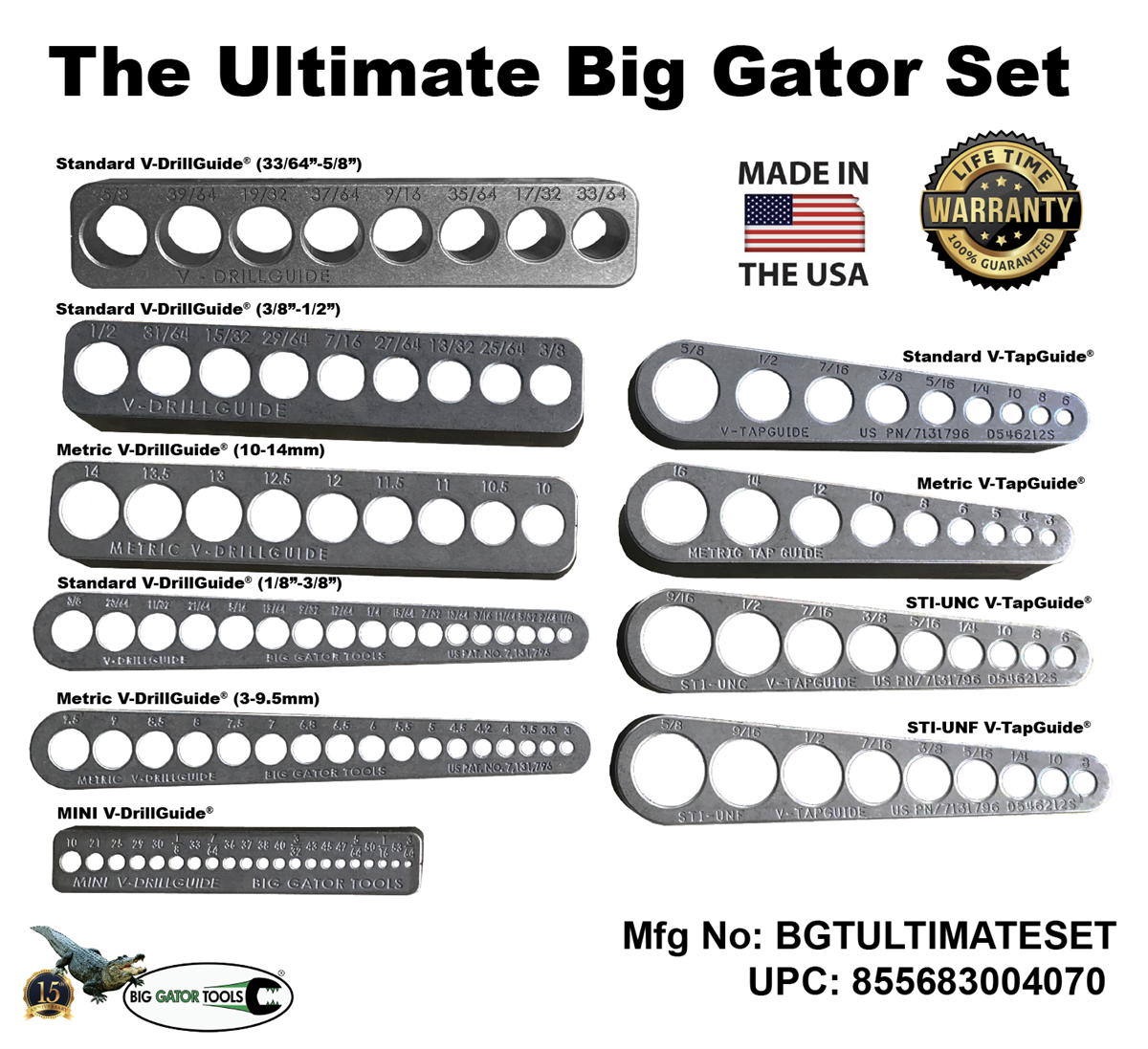

Big Gator Tools' BGTULTIMATESET - V-Drill Guide + V-Tap Guide 10PC Set SAE/Metric. Set includes: one Standard V-DrillGuide® - (33/64"-5/8"), one Standard V-DrillGuide® - (3/8-1/2"), one Metric V-DrillGuide® (10 - 14mm), one Standard V-DrillGuide® - (1/8-3/8"), one MINI V-DrillGuide, one Metric V-DrillGuide® 3-9.5mm, one Standard V-TapGuide®, one Metric V-TapGuide®, one STI-UNC V-TapGuide® (coarse threads) and one STI-UNF V-TapGuide® (fine threads). Great for repair jobs or new screw thread insert jobs. Natural steel finish, non-plated. Portable, pocket-sized. Made from special nickel alloyed steel that is heat treated for durability. Has a precision ground base to assure stability and accurate perpendicular alignment and center taps to cut perfectly straight threads on flat or curved surfaces. Helps prevent misalignment and tap damage saving time and money. Automatically squares up the tap with the surface. The center "V-groove" along the bottom of the guide allows for perpendicular alignment with all tap sizes, a snug fit on curved receiver barrels or parts with corners. Outer edges are surface ground to precise tolerances for a tight fit on flat surfaces. Precision machined from nickel-alloy steel then heat-treated for strength durability and dimensional stability. Each comes in a corresponding handy plastic storage case w/surface ridges to prevent opening, PegBoard-Friendly™. Lifetime Factory Warranty - ISO 9001:2000 Certified - American Engineered and Made in the USA. ed/hb
Note: Tool in pictures not included!
To see more V-DrillGuide® and V-DrillGuide®, go to > TOOL BRANDS > BIG GATOR TOOLS

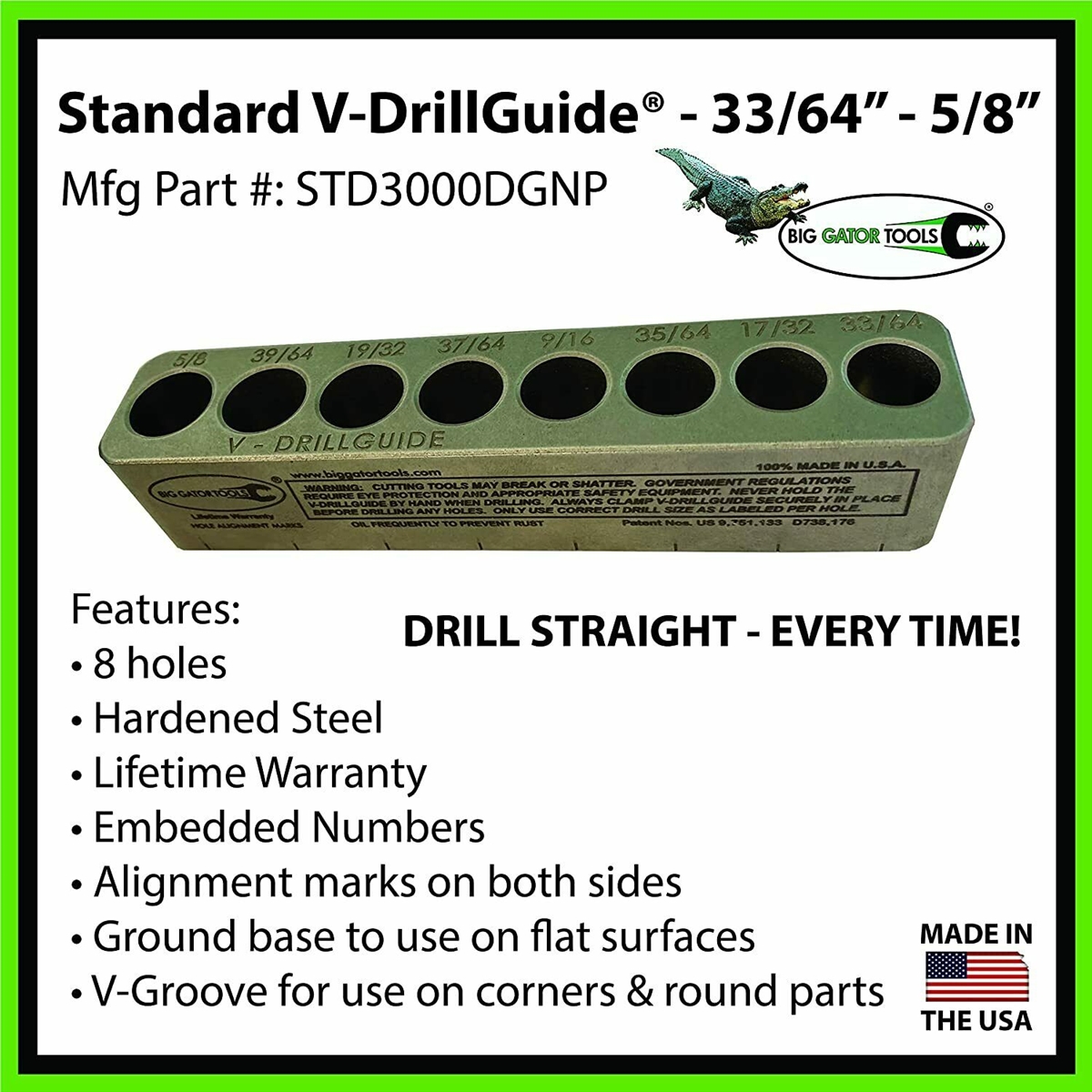

STD3000DGNP - Portable Standard V-DrillGuide® - w/8 Standard Imperial Fractions (SAE) Size:
33/64, 17/32, 35/64, 9/16, 37/64, 19/32, 39/64, ⅝"
STD2000DGNP - Portable V-DrillGuide® w/9 Standard Imperial Fractions (SAE) Size:
13/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, ½"
STD1000DGNP - Portable V-DrillGuide® w/17 Size ⅛" to ⅜" in 1/64" increments Standard Imperial Fractions (SAE) Sizes:
⅛, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, ¼, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, ⅜"
MDG2000NP - Portable V-DrillGuide® w/9 Metric Sizes10mm to 14mm. Sizes:
10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14 mm
MDG1000NP - Portable V-DrillGuide® w/17 Metric Hole Sizes:
3mm to 9.5mm in 0.5mm increments plus 3.3, 4.2, 6.8 mm
MTG500NP - V-TapGuide® Handle Tap Metric Sizes:
1.6, 2, 2.5, 3, 3.5, 4, 5, 6, 8, 10, 12, 14, 16 mm
STD500NP - Portable V-TapGuide® - Handle Tap Standard SAE Sizes:
0-80, 1/64, 1-72, 2-56, 2-64, 3-48, 3-56, 4-36, 4-40, 4-48, 5-40, 5-44, 6-32, 6-36, 6-40, 8-32, 8-36, 8-40, 10-24, 10-32, ¼-20, ¼-28, 5/16-18, 5/16-24, ⅜-16, ⅜-24, 7/16-14, 7/16-20, ½-13, ½-20, ⅝, ⅝-18". (Tap guide does cover tap sizes 0-80 to ⅝, eXcept #12 and 9/16. 0-80 to #6 have the same size shank, so only one hole size is needed)
SDGMINI - Portable Mini V-DrillGuide® 21-hole sizes:
10, 21, 25, 29, 30, ⅛", 33, 7/64", 36, 37, 38, 40, 3/32", 43, 45, 47, 5/64, 50, 1/16", 53, 3/64"
STI-UNF200SNP - STI-UNF V-TapGuide® - Fine Thread STI Sizes:
⅝-18, 9/16-18, ½-20, 7/16-20, ⅜-24, 5/16-24, 1/4-28, 10-32, 8-36
STI-UNC100SNP - STI-UNF V-TapGuide® - Coarse Thread SAE Ground Tap Sizes:
9/16-12, ½-13, 7/16-14, ⅜-16, 5/16-18, ¼-20, 12-24, 10-24, 8-32, 6-32
Terms: STI (Screw Thread Insert)
UNF (United Fine Thread)
SAE (Society of Automotive Engineers)
SAE Standard comes from the English or Imperial system, which is based on inches and the fractions thereof
Metric System "International System of Units" originated in France in 1799 NOTE: NOT TO BE USE WITH HAMMER DRILLS Tool in pictures not included!
WARNINGS!Always ensure that you and persons in the vicinity wear approved eye protection. NOT insulated. Will NOT protect against electrical shock.
V-DrillGuide® and V-TapGuide® is a registered trademark of BIG GATOR TOOLSAll Trademarks Belong to Their Respective Companies. Safety Info:
