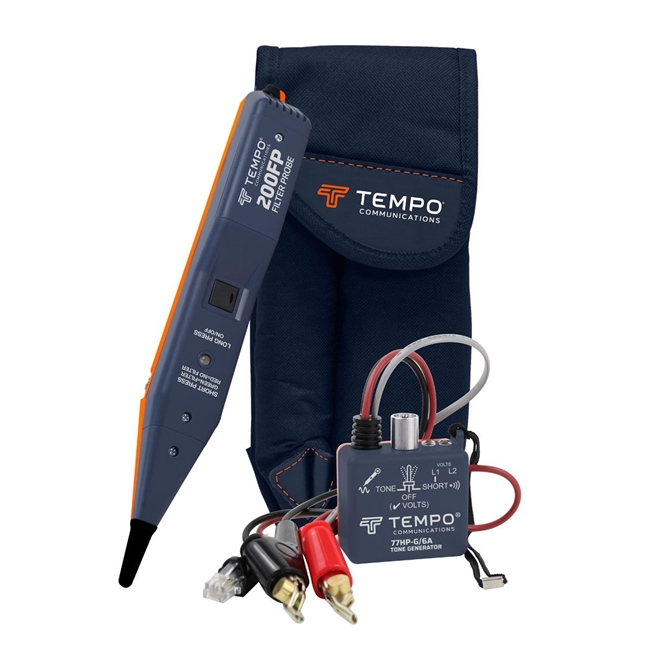

Tempo 801K - Pro Tone / Probe Wire Tracer Kit w/Case

Alternative Views:

PLEASE NOTE: The product title and description supersede the image shown, items may vary from picture. The picture provided by the manufacturer is not always exact. Manufacturer's change product design and pricing without prior notice. We may use various and other image sizes for multiple sizes of an item.

List Price: $234.97

HB Price: $164.97

Savings: $70.00

HB Product Number: TEM-801K

Qty:

Description

Technical Specs

Notes & Safety Warnings

Tempo Communications' 801K Premium Tone and Probe Kit includes the 77HP-G/6A High Power Tone Generator and the 200FP Inductive Amplifier Probe in a rugged woven polyester carrying Cordura® case. The 801K meets the requirements of today’s technician. American Engineered and Made to the high-quality Data and Telco standards. ed/hb

Tempo Communications' 77HP-G/6A - Tone-Generator with ABN clips permit technicians to identify the conductor within a bundle, at a cross-connect point or at the remote end. It can be used on twisted pair wiring (Telecom, Datacom, Alarm, Intercom, etc.), single conductors, coaxial cables, de-energized AC wiring and most other wiring. Includes tone generator with 66-Clips, Angled Bed-of-Nails (ABN) Test Clips, modular plug, RJ11/45, socket adapter. Sporting the Tempo logo.

Tempo Communications' 200FP - Filter Probe is designed to identify and trace wires or cables within a group without the need of removing insulation. In addition, the 200FP has been specifically designed to filter out all power-related noise to eliminate "Power Line Hum''. When the 200FP is active, but not detecting a signal, the LED will flash momentarily (every 4 seconds) as a visible ON indicator and a reminder. When a tone signal is detected by the probe, the signal LED will serve as a signal strength indicator: The brighter the LED, the stronger the tone signal detected. The unit is constructed of durable ABS plastic. Sporting the Tempo logo.

Tempo Communications' 700C - Dual Carrying Case for 77HP-G/6A Tone-Generator and 200FP Probe. Durable woven polyester Cordura® case. Fits belts up to 3" wide. You have a "D-ring" option to clip to a tool-bag. A hidden pocket on the back to hide some bill$. Sporting the Tempo logo. ed/hb

Note:
77HP-G/6A + 200FP + 700C = 801K
Mfg. Part # 50086901 - Cat # 801K

Features & Benefits:

Tempo 77HP-G/6A - Tone Generator

77HP-G/6A Tone Generator (ABN Clips)
Selectable Warble Tone
Continuity Testing (LED & Beeper)
Polarity Testing
Talk Battery Supply
Two-line Modular Test Lead (RJ-11)
Three-Color LED (Identifies AC ring voltage)
Weather-Resistant Design
66-Clips, Angled Bed-of-Nails (ABN)
RJ11 & RJ45 socket
EZ-to-Read Markings
Safety Lanyard
Battery Operated (9V not included)
Sporting the Tempo logo
Tempo's Orange/Dark Blue

Note:
Angled 66-Clips w/ABN are preferred by Telco and Interconnects world wild!

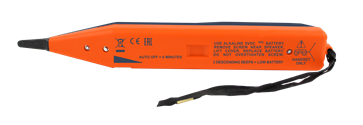

Tempo 200FP - Filter Probe

Used with any tone generator for faster and more accurate cable and wire identification
By selectively filtering out 60Hz and its harmonics, the 200FP used with tone generator for faster, more accurate, cable and wire I.D.
Can be used in limited-space areas
3.5mm headphone jack
Conservative battery life, uses two AA batteries (not included)
Reduced risk of shorting terminals
Slim, comfortable design
Recessed on/off push-button control
Adjustable sensitivity/volume control
Blended carbon/plastic tip
EZ-to-Read Markings
Safety Lanyard
Sporting the Tempo logo
Tempo's Orange/Dark Blue

Tempo 700C Dual Carrying Case
