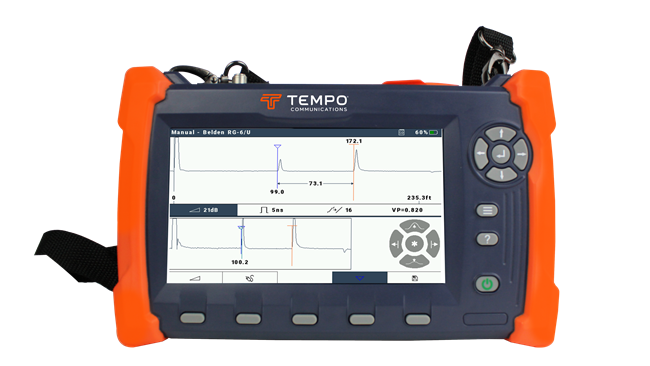

Tempo Communications' CS90 - CableScout® also know as the TV90E is the "Every Technician" TDR "Must Have" tester: as cable companies and their contractors can now afford to equip their entire workforce with a modern coax CATV TDR designed for the DOCSIS3.1 era. By applying more affordable modern and future-proof technology we bring the capabilities of a 1 ns pulse and much higher bandwidth within reach of your whole team. We support this with a robust, ergonomic enclosure, internal lithium polymer battery pack with fast charging and monitoring, a high-resolution sunlight-readable color display and a simple intuitive user interface.
CS90/TV90E gives the user the option to save screenshots or full-range trace files for later analysis or that can be shared with others. Including "FastFind™"at no additional charge., FastFind™ is a software feature that automatically scans to find the end of cable or largest event, saving several key presses as the technician gets to the truth of what’s happening on the cable in seconds.
CS90/TV90E has multiple operating languages: English, French, German and Spanish at launch and we're working on several more. Software is now updatable in the field; copy the new software to the SD card, power up, select “update” and you’ll have the latest features in seconds. The SD card or a USB flash drive can additionally be used to “clone” cable types and settings between units, allowing deployment to the field force with just the right set of data they need and no other confusing cable types. Sporting the Tempo Communications logo. American Engineered and Made to the high-quality CATV and Satellite TV industry standards. ed/hb
Dual zipper carry bag w/padded shoulder strap in Tempo's Dark Blue included.
Please - Call for Price and Availability
Tempo® Communications
Mfg. Part # ********* - Cat # CS90 or TV90E (same unit)
Kit Contents: CableScout® Main Unit (CS90) in Tempo Orange / Dark Blue Universal AC/DC adapter
Vehicle 12V power cord
F to F "barrel" adapters
Quick start guide
Dual zipper carry bag w/padded shoulder strap in Tempo's Dark Blue
Sporting the Tempo Communications logo
Note:SV-03 Test Port adapter*
F to BNC adapter*
F to alligator clips cord*
*These items only in the CS90/TV90E and not included in the CS90B. The CS90B is a basic kit that leaves out a couple of accessories only used in the CATV industry.
Tempo® Communications
Mfg. Part # ******** - Cat # CS90 or TV90E (same unit)
WARNINGS!Always wear approved eye protection.
NOT insulated. Will NOT protect against electrical shock.
Safety Info:
California proposition 65 warning - www.P65Warnings.ca.gov
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features & Benefits:
- Large, Color, HiRes Backlit Display (Readable Outdoors in Bright Conditions)
- Splash, Dust, and Shock-Resistant Packaging
- Zero Dead Zone
- 1, 5 and 25 ns pulse widths standard
- FastFind™ whole cable overview
- Dedicated 75 Ω F Connector
- Intermittent Fault Location
- Context-Sensitive Help (Help Screens Available for All Functions)
- Small, Portable, Lightweight Package
- Internal Cable Types for Fast, Accurate Testing
- Rechargeable Lithium Ion Battery for 8+ hrs. of use
- Span View Window Shows Entire Cable and Navigation.
- Narrow Pulse Width Enables Near-End Fault ID
- Tempo's Orange Grip
|
|
|
|
|
|
