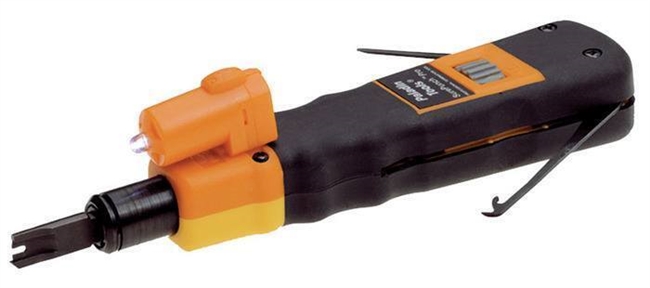

Tempo / Paladin PA3588 - Impact Tool SurePunch-PRO PDT w/110 / 66-Blades / Light

PLEASE NOTE: The product title and description supersede the image shown, items may vary from picture. The picture provided by the manufacturer is not always exact. Manufacturer's change product design and pricing without prior notice. We may use various and other image sizes for multiple sizes of an item.

List Price: $144.97

HB Price: $114.97

Savings: $30.00

HB Product Number: TEM-PA3588

Qty:

Description

Technical Specs

Notes & Safety Warnings

Tempo Communications' PA3588 - Voice and Data Impact Tool called, SurePunch®Pro Punch Down Tool (PDT) with 110 / 66-Blades and LED Light. Ergo-Finger-Grips and non-slip rubber-embedded cushioned handle for comfort. Adjustable HI/LO spring compression for all cable types. Terminate cable in single punch – including 23 AWG Cat6. Features a hideaway Pop-out hook (spludger) and eXtractor (pick) tool for removing old wires or pushing down wires. Integrated wire-stripper blade seated in the body of the tool with protective guide. Blade storage area in end of handle with comfortable latch cover. Sporting the Paladin Tools logo. American Engineered and Made to the high-quality Telco standards. ed/hb

Note:

The 110 Blade has a curved on the cut-side to accommodate the smaller Keystone Jack housings.

Compatible 110, 66-blocks and Jacks with:
Level 3 cable, Cat5 cable, Cat5e cable, Cat5E cable, Cat6 cable, and Cat6a cable.

SurePunch®Pro Punch Down Tool (PDT)
Features a Bayonet style (twist-and-lock) socket mechanism will accept all manufacturers' standard "twist-and-lock" Telephone Blades.

Tempo® Communications/Paladin Tools®
Mfg. Part # 52050824 - Cat # PA3588
Packaged: Clamshell

Features & Benefits:

Terminate cable in single punch - including 23 AWG Cat6
Detachable light with long-life LED specially designed to focus the light on the panel work area
Luminous intensity of the LED is 2200 mcd
Ergo-Finger-Grips and non-slip rubber-embedded cushioned handle for comfort
Multi-use spudger that can be used as a screwdriver or an IDC contact insertion tool
Hook to feed wires through holes
Pick to separate bonded twisted-pair cables or to strip insulation and cut wire
Adjustable HI/LO spring compression for all cable types. LO= 27.5 lbs. (122 N), HI= 37.5 lbs. (167 N)
EZ blade insertion (locks in place) - twist-and-lock style blades
Blade storage area in end of handle with comfortable latch cover
