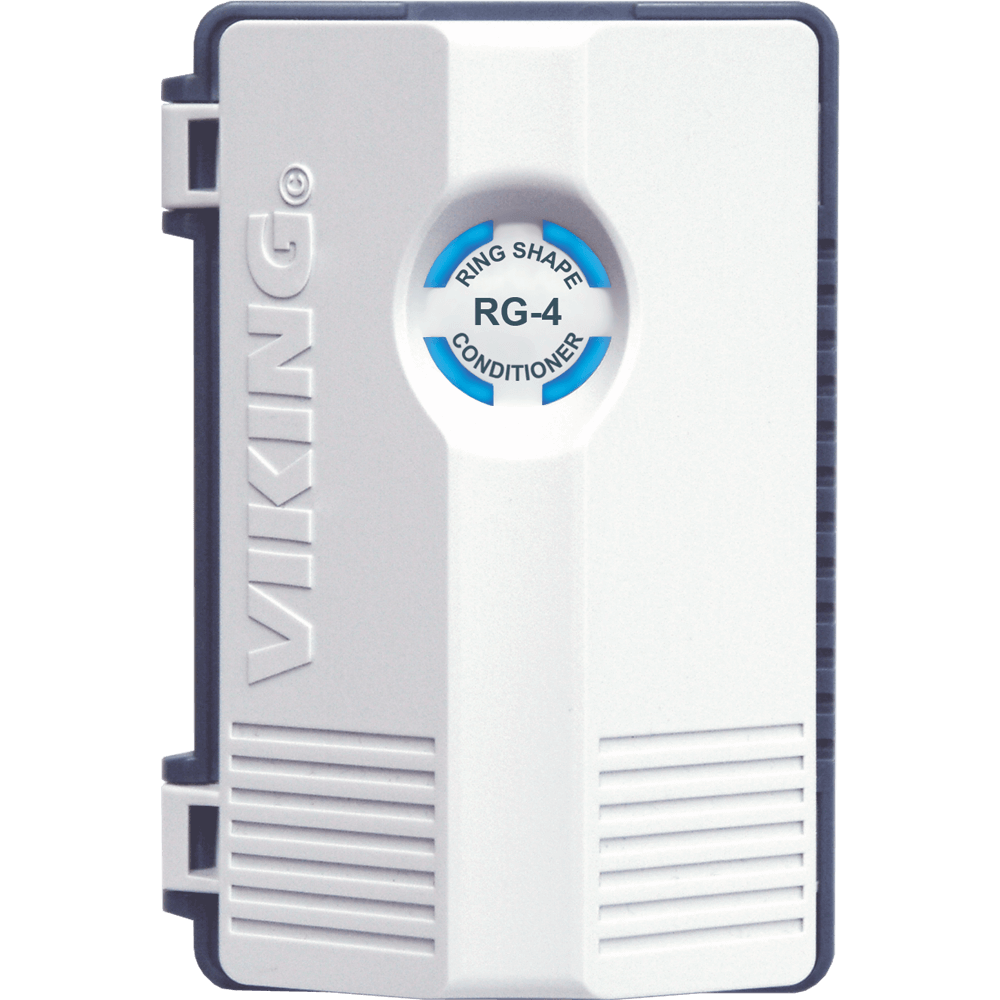

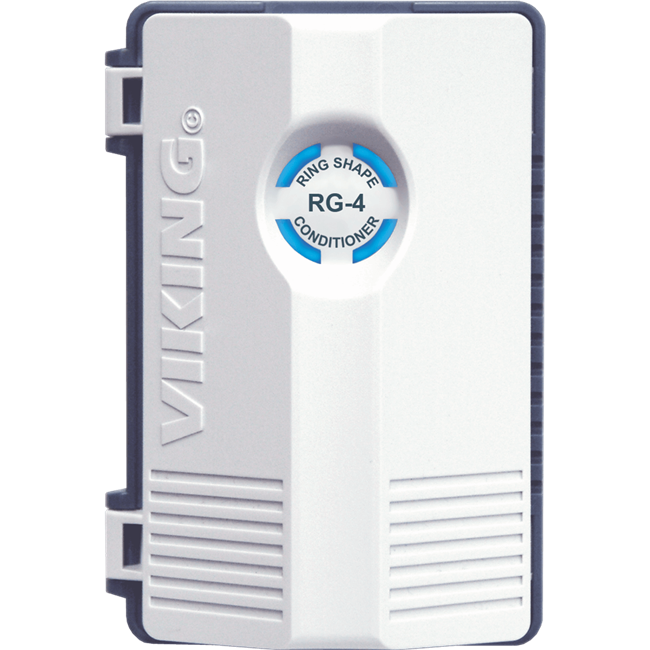

Viking Electronics' RG-4 - Ring Shaper / Booster - generator is designed to reshape and increase the ringing power of an existing analog line, PABX extension, FXS port, IP phone system analog port or any other telecom device which provides ringing.
The RG-4 duplicates the incoming ring cadence allowing it to be compatible with custom ringing features. Each line is capable of ringing four 1 REN or eight 0.5 REN telephones and does not affect normal operation of the telephone line or features, such as caller ID, call waiting, hook-switch flash features, CPC signaling, etc. ed/hb
Applications:
- Reshapes troublesome distorted ringing signals
- Boosts ringing power of FXS port or IP phone system analog port
- Use with Viking’s door-boxes to increase the number of phones they can ring
- Boost ring power analog PABX/KSU stations that are weak or fail
Please - Call for Price and Availability
For multi-line applications, use Viking models RG-204 (4 line), RG-212 (12 line) or RG-224 (24 line). The Viking model RG- 10A may be used for single line higher drive output applications up to 12 REN.
|
