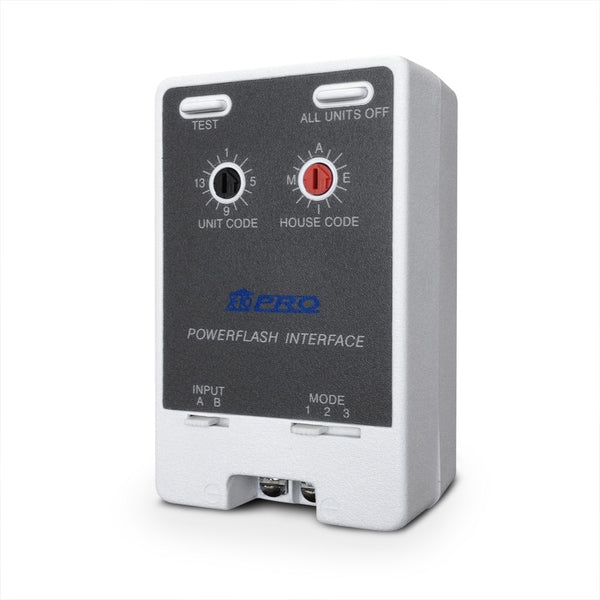

X10 PRO's PSC01 - Burglar Alarm, PowerFlash Output Sender Interface sends an X10 Signal in response to a "Make or Break" contact from a Security Panel, Driveway Sensor, Doorbell, Magnetic Door/Window Switch, you name it! If it's got an output, it can probably trigger the PowerFlash. The Module can be activated by a low voltage output or a dry contact switch closure. Upon activation, the PSC01 sends an X10 ON type Signal. The Module becomes deactivated when the low voltage is removed or the dry contact switch is opened and an OFF type Signal is sent. See Output Modes below, for Signal types. ed/hb
This ain't your Grandpa's BSR System!
Note: Compatible with LEVITON Electrical, DEC Home Control
Wall plates sold separately
Factory warranty only!
No returns!
X10 Product No.: PSC01
What's Included: (1) X10 PRO PowerFlash Burglar Alarm Interface, (1) Installation guide
Compatibility: Use with output devices to send X10 signals
Activation.: Dry contact or low voltage (6-18VDC)
Inputs: Input A: 6-18VAC/DC or audio., Input B: Dry contact closure. Note: Compatible with LEVITON Electrical, DEC Home Control
Factory warranty only! No returns!
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features & Benefits:
The PSC01 PowerFlash Interface allows almost anything to send X10 signals. The plug-in unit sends an X10 signal to receiver devices when a contact closure is made or low-voltage (6-18V AC, DC or Audio) is applied to its terminals.
The PSC01 device connects to a dry contact such as the external connectors on an existing, wired in security system and transmits 1 of 3 signals when tripped.
3-Mode:
1: Turns all X-10 controlled lights ON along with 1 appliance.
2: Flashes X-10 controlled lights ON and OFF.
3: Turns 1 selected X-10 address ON and OFF.
Note:
Compatible with LEVITON Electrical, DEC Home Control
|
|
|
|
|
|
|
